Material Sizes for Processing

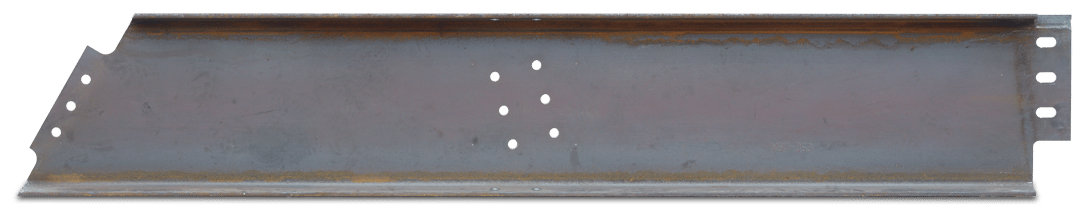

PythonX STRUCTURAL fabricates a much wider variety of structural sections and sizes compared to conventional single-purpose machines. Whether it’s a 2″x2″ angle or a large W36x300 beam, and everything in between, PythonX STRUCTURAL automatically processes 99% of the typical structural fabrication shop’s material.
And PythonX STRUCTURAL parts are more accurate than parts from traditional fabrication equipment or manual fabrication:
- The measuring cart system works with the robot to locate features exactly according to part drawings.
- Everything is done in one pass, rather than multiple stations, so all holes and features are placed more accurately relative to each other.
| Profile Shape | Minimum | Maximum |
| Beam Width | 4" (101 mm) | 48" (1219 mm)** |
| Beam Height | 4" (101 mm) | 18" (457 mm) |
| HSS Width | 2" (51 mm) | 12" (308 mm) |
| HSS Height | 1" (25 mm) | 18" (457 mm) |
| Channel Width | 3" (76 mm) | 36" (914 mm) |
| Channel Height | 1" (25 mm) | 4" (101 mm) |
| Angle Width | 2" (51 mm) | 10" (254 mm) |
| Angle Height | 2" (51 mm) | 10" (254 mm) |
| Strip/Plate Width | 4" (101 mm) | 36" (914 mm) |
| Strip/Plate Thickness | 0.25" (6.3mm) | 1.25" (32 mm) |
| Part Length | Standard system accommodates 40 ft. (12 m) lengths. Can increase to 80 ft. (24m) in increments of 4 ft. (1.2m). | |
| Material Thickness | Pierce up to 1.50" (38 mm). Edge Start up to 2" (51 mm). Can upgrade to 2" (51mm) pierce, 3" (75mm) edge. | |
| Profile Shape | Minimum | Maximum |
| Beam Width | 4" (101 mm) | 48" (1219 mm)** |
| Beam Height | 4" (101 mm) | 18" (457 mm) |
| HSS Width | 2" (51 mm) | 12" (308 mm) |
| HSS Height | 1" (25 mm) | 18" (457 mm) |
| Channel Width | 3" (76 mm) | 36" (914 mm) |
| Channel Height | 1" (25 mm) | 4" (101 mm) |
| Angle Width | 2" (51 mm) | 10" (254 mm) |
| Angle Height | 2" (51 mm) | 10" (254 mm) |
| Strip/Plate Width | 4" (101 mm) | 36" (914 mm) |
| Strip/Plate Thickness | 0.25" (6.3mm) | 1.25" (32 mm) |
| Part Length | Standard system accommodates 40 ft. (12 m) lengths. Can increase to 80 ft. (24m) in increments of 4 ft. (1.2m). | |
| Material Thickness | Pierce up to 1.50" (38 mm). Edge Start up to 2" (51 mm). Can upgrade to 2" (51mm) pierce, 3" (75mm) edge. | |
** 36" (914mm) is standard and most popular size. 48" (1219 mm) is an upgrade.
